• TYPE :
  • ELBOW, CROSS, STREET ELBOW, TEE, BOSS, COUPLING, HALF COUPLING, CAP, PLUG, BUSHING, UNION, SWAGE NIPPLE, BULL PLUG, REDUCER INSERT, PIPE NIPPLE ETC.
  • THREADED (NPT OR BSP) OR SOCKET-WELD
  • SIZE RANGE : 1/8"-4"(6mm-100mm)
 THREADED WOG :2000, 3000 AND 6000 LBS / SOCKET-WELDING WOG : 3000,6000,9000 LBS.
  • SPECIFICATION:
  • DIM. SPEC: ANSI B16.11 , MSS SP-79
  • MATERIAL SPEC: ASTM A105 , SS304, SS304L, SS316, SS316L
  • SIZE OF RAW MATERIAL: DIA. 19-85MM ROUND BAR.
  • MARKING:
  • CARBON AND ALLOY STEEL: MARKED BY STAMPING.
  • STAINLESS:MARKED BY ELECTRO-ETCHED OR JET PRINTED OR STAMPED.
  • 3/8" UNDER: BRAND ONLY.
  • 1/2"TO 4": MARKED BRAND, MATERIAL,HEAT NO. B16(BELONG TO ANSI B16. 11 PRODUCT),PRESSURE AND SIZE.
  • PACKING : CARTON/WOODEN CASE.

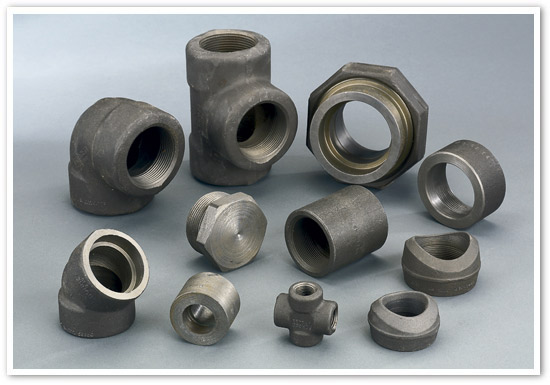

    Forged Steel Fittings:
