¡¡ Dismantling Joints
   We are one of the biggest Ductile iron fittings for PVC-U or PE piping systems manufacturer and Ductile iron fittings for PVC-U or PE piping systems factory in China.We can manufacture and supply Ductile iron fittings for PVC-U or PE piping systems according to your requirements. More types of Ductile iron fittings for PVC-U or PE piping systems wanted, please contact us right now!
¡¡ --------------------------------------------------------------------------------------------
¡¡ BACK>>>>
¡¡ --------------------------------------------------------------------------------------------
¡¡ Ductile iron fittings for PVC-U or PE piping systems
Standard:DIN8061 DIN8062 DIN EN12842
Pressure:PN10/16
Material: GGG50
Joint Type:Flanged Joint,Socket Joint
Finishing:Blue epoxy coated or bitumen coated
Gasket: EPDM
Items All socket tee, hydrant tee, flange socket, flange spigot, double socket bend 90 deg 45 deg 22.5 deg. 11.25deg, end caps, double socket reducer, double socket collar threaded branch Double flanged bend 90 deg 45 deg 22.5 deg. 11.25deg, All flanged tee, Double flanged taper,Double socket bend 90 deg 45 deg 22.5 deg. 11.25deg, Collar, Flanged socket, Cap,Double socket taper, All socket tee, Double socket tee with flanged branch Size DN50-DN300
Packing: Wooden cases with plastic lining.
¡¡ ¡¡

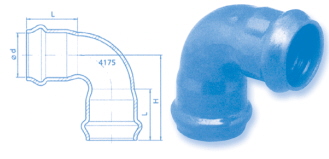

¡¡ Flange spigot Double socket 90 bend
¡¡

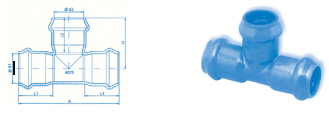

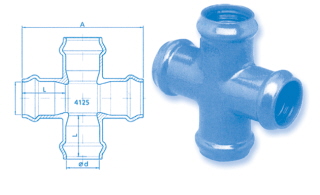

¡¡ All Socket tee 90 All socket crosses
¡¡

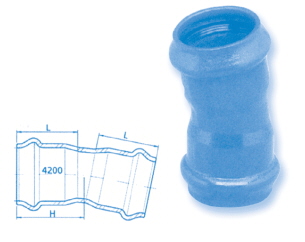

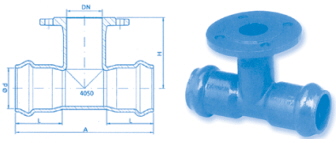

¡¡ Double socket tee-flanged branch DOUBLE socket 11.25 bend
¡¡

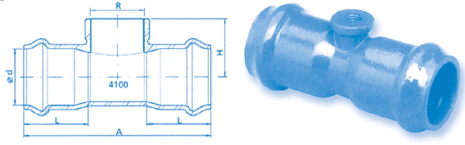

¡¡ Double socket callar-thread branch DOUBLE socket 22.5 bend
¡¡
¡¡ Caps threaded branch DOUBLE socket 45 bend
¡¡

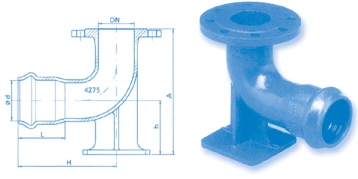

¡¡ Flanged socket 90 duckfoot bend Double socket reducer
¡¡
¡¡ ¡¡ ¡¡
¡¡ ¡¡
¡¡ ¡¡
¡¡ ¡¡
¡¡

¡¡
