Repair clamp
   We are one of the biggest Repair clamp manufacturer and Rclamps,repair clamps,Pipe Repair Clamps，stainless steel pipe repair clamp,Full Wrap Repair Clamp,Stainless Steel Coupling Repair Clamp,Patch Clamp，Full circle single band repair clamps，double band repair clampsF, multi band repair clamps，Tapped repair clamps，Flnged offtakes，ervice Saddles，Fast/Half clamps，Junior clamps epair clamp factory in China.We can manufacture and supply clamps,repair clamps,Pipe Repair Clamps，stainless steel pipe repair clamp,Full Wrap Repair Clamp,Stainless Steel Coupling Repair Clamp,Patch Clamp，Full circle single band repair clamps，double band repair clampsF, multi band repair clamps，Tapped repair clamps，Flnged offtakes，ervice Saddles，Fast/Half clamps，Junior clampsRepair clamp according to your requirements. More types of Repair clamp wanted, please contact us right now!
　 --------------------------------------------------------------------------------------------
　 BACK>>>>
　 --------------------------------------------------------------------------------------------

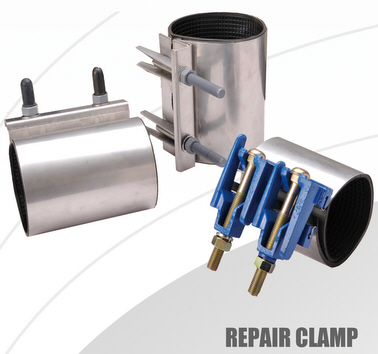

　 Full Seal Stainless Steel Repair Clamps　
　 Full-Seal clamps provide an economical repair for circumferential breaks or cracks, multiple leaks or holes in pipe. They are available in standard lengths for cast and ductile iron, standard steel, PVC, and A-C. Each clamp size can accommodate a wide range of O.D. variations.
Features:
Specifications:

Band: 304 Stainless Steel.
Bolts and Nuts: 304 Stainless Steel.
Lugs: 304 Stainless Steel
Sidebars: 304 Stainless Steel permanent fusion with the repair clamp band.
Lifter Bar: 304 heavy gauge Stainless Steel. Lip curve hold bolts in position while tightening and serves as a bearing surface for nuts.
Gasket: SBR Rubber
Armor: 304 Stainless Steel vulcanized and recessed into the gasket to ensure uniform compression against the pipe.
Passivated: All welds are fully passivated by means of a chemical technique, which restores the corrosion　
　 　Pipe Repair Clamps，repair clamp,Ремонтные хомуты，Свертная муфта，Reparaturschelle，opaski naprawcze，Муфты ремонтные，Abrazaderas de Reparación，рамонтны хамут，MANCHON DE REPARATION，Faja de reparación，Collari di riparazione，abrazadera de reparacionPipe Repair Clamps，repair clamp,Ремонтные хомуты，Свертная муфта，Reparaturschelle，opaski naprawcze，Муфты ремонтные，Abrazaderas de Reparación，рамонтны хамут，MANCHON DE REPARATION，Faja de reparación，Collari di riparazione，abrazadera de reparacion
　 SS304 Single band repair clamps  　
　 band/lug plate/C-counter/Boltings:SS304， 　
　 Gasket:EPDM 　
　 LENGTH 150MM 200MM 250MM 300MM 400MM 500MM 600MM
　 　 PIPE RANGE
1.5" stainless steel repair clamp 45-55
1.5" stainless steel repair clamp 48-56
1.5" stainless steel repair clamp 45-55
2" stainless steel repair clamp 59-67
2" stainless steel repair clamp 60-67
2" stainless steel repair clamp 65-73
2" stainless steel repair clamp 62-76
2" stainless steel repair clamp 69-76
2" stainless steel repair clamp 75-83
3" stainless steel repair clamp 86-94
3" stainless steel repair clamp 88-98
3" stainless steel repair clamp 88-103
3" stainless steel repair clamp 88-110
3" stainless steel repair clamp 91-98
3" stainless steel repair clamp 94-102
3" stainless steel repair clamp 95-105
4" stainless steel repair clamp 100-120
4" stainless steel repair clamp 108-118
4" stainless steel repair clamp 108-128
4" stainless steel repair clamp 113-121
4" stainless steel repair clamp 115-128
4" stainless steel repair clamp 121-131
5" stainless steel repair clamp 126-136
5" stainless steel repair clamp 132-142
5" stainless steel repair clamp 130-145
5" stainless steel repair clamp 140-155
5" stainless steel repair clamp 145-155
5" stainless steel repair clamp 151-161
5" stainless steel repair clamp 155-165
6" stainless steel repair clamp 158-172
6" stainless steel repair clamp 159-170
6" stainless steel repair clamp 166-177
6" stainless steel repair clamp 168-182
6" stainless steel repair clamp 168-190
6" stainless steel repair clamp 170-180
6" stainless steel repair clamp 170-190
6" stainless steel repair clamp 174-184
6" stainless steel repair clamp 179-189
7" stainless steel repair clamp 180-193
7" stainless steel repair clamp 189-199
7" stainless steel repair clamp 193-203
7" stainless steel repair clamp 190-210
7" stainless steel repair clamp 202-212
8" stainless steel repair clamp 210-230
8" stainless steel repair clamp 215-235
8" stainless steel repair clamp 217-229
8" stainless steel repair clamp 218-228
8" stainless steel repair clamp 222-233
8" stainless steel repair clamp 220-230
8" stainless steel repair clamp 225-240
10" stainless steel repair clamp 240-260
　 stainless steel repair clamp 229-239
10" stainless steel repair clamp 228-243
10" stainless steel repair clamp 236-246
10" stainless steel repair clamp 233-253
10" stainless steel repair clamp 243-253
10" stainless steel repair clamp 243-260
10" stainless steel repair clamp 248-258
10" stainless steel repair clamp 250-260
10" stainless steel repair clamp 252-263
10" stainless steel repair clamp 261-271
11" stainless steel repair clamp 268-288
11" stainless steel repair clamp 270-280
11" stainless steel repair clamp 270-288
11" stainless steel repair clamp 280-291
11" stainless steel repair clamp 288-298
12" stainless steel repair clamp 298-309
12" stainless steel repair clamp 300-310
12" stainless steel repair clamp 304-314
12" stainless steel repair clamp 315-335
12" stainless steel repair clamp 313-336
12" stainless steel repair clamp 321-331
12" stainless steel repair clamp 333-343
12" stainless steel repair clamp 340-351
12" stainless steel repair clamp 340-360
12" stainless steel repair clamp 348-358
12" stainless steel repair clamp 356-366
　 REPAIR CLAMP OTHER TYPE
　 Pipe Repair Clamps，repair clamp,Ремонтные хомуты，Свертная муфта，Reparaturschelle，opaski naprawcze，Муфты ремонтные，Abrazaderas de Reparación，рамонтны хамут，MANCHON DE REPARATION，Faja de reparación，Collari di riparazione，abrazadera de reparacionPipe Repair Clamps，repair clamp,Ремонтные хомуты，Свертная муфта，Reparaturschelle，opaski naprawcze，Муфты ремонтные，Abrazaderas de Reparación，рамонтны хамут，MANCHON DE REPARATION，Faja de reparación，Collari di riparazione，abrazadera de reparacion

　
　 　

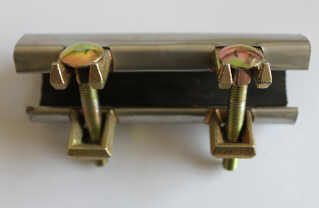

　 　 Repair Clamp (Patch Clamp)
　 This kind of clamp are used to quick repair the leaked pipes. It is consist of one stainless bend, one set of bolt, two special casting parts, and one sheet of NBR gasket, The cast body can be Rilsan 11 Nylon coating or Hot Dip Galvanized. The size range are from DN15 to DN200
　 　
Repair Clamp (Patch Clamp)
Size
Inch
Range
U.Wgt
DN15
1/2"
21-25
0.24
DN20
3/4"
26-30
0.25
DN25
1"
33-37
0.27
DN32
11/4"
42-45
0.38
DN40
11/2"
48-51
0.39
DN40
11/2"
50-54
0.39
DN50
2"
60-64
0.49
DN65
21/2"
69-73
0.5
DN65
21/2"
71-76
0.5
DN80
3"
87-93
0.51
DN80
3"
94-100
0.52
DN80
3"
99-104
0.65
DN100
4"
105-111
0.65
DN100
4"
112-117
0.66
DN100
4"
120-126
0.66
DN100
4"
126-131
0.66
DN125
5"
131-136
0.69
DN125
5"
139-145
0.72
DN125
5"
149-155
0.72
DN150
6"
156-162
0.74
DN150
6"
167-173
0.76
DN175
7"
173-179
0.76
DN200
8"
217-223
0.8
DN200
8"
223-229
0.82
